The Inertial Systems and Sensor Fusion Lab results from a collaboration of the Divisions of Aeronautical and Electronics Engineering at ITA, and conducts research and development of algorithms and subsystems for inertial navigation aided by sensor fusion, guidance, estimation and control of dynamic systems. Historically, the lab is a continuation and deepening of the scope and objectives of the early Laboratory of Computer Vision and Active Perception, which in the 1990s developed at ITA a project with support of state and federal funding agencies, respectively FAPESP and CAPES, in the area of Active Computer Vision using an antropomorphic head equipped with stereoscopic vision . The lab has been funded by Project FINEP-DCTA-INPE/Inertial Systems for Aerospace Apllication (Project SIA), Project CNPq-FAPESP/INCT Space Sciences, and Project FINEP-UnB-ITA-XMobots/Development  of a Mini-UAV with a Gyrostabilized Imaging Pod. The results in the areas of estimation and control of dynamic systems, navigation, guidance, and computer vision have been applied to university satellites and UAVs.


The lab has integrated and tested on the ground and in flight gyrostabilized imaging pods and sensor fusion algorithms for inertial navigation aided by GPS, altimeter, and magnetometer, and georeferenced pointing. The lab has developed the embedded softwarerunning on board the imaging pod for real-time navigation, attitude estimation, and control of gyrostabilization and georeferenced pointing. More recently, the lab has directed efforts towards developing and testing computer vision-aided inertial navigation in real time to provide a robust solution in scenarios where jamming results in GPS outage.

Scope and objectives:

Inertial navigation aims at the estimation of position, velocity, and often attitude of a vehicle from inertial measurements acquired on board, that is, specific force and angular rate with respect to an inertial reference frame provided, respectively, by accelerometers and rate-gyros assembled within an inertial measurement unit (IMU). Inertial navigation has the advantage of autonomy with respect to external aiding. However, sophisticated, expensive sensors are called for to arrest the navigation errors within the acceptable limits for inertial navigation, often  considered to be in the order of one nautical mile per hour of operation. The use of low-cost inertial sensors severely degrades accuracy to a much poorer level and thus additional sensors are required to reach the acceptable error limits previously mentioned. Hence, the inertial navigation system (INS) aided by sensor fusion becomes dependent on aiding sensors that compromise the previous autonomy since such aiding sensors are subject to external disturbances, or intentional jamming. Navigation aiding via sensor fusion arises from the statistical processing of signals from GPS receivers, magnetometers, baro-altimeters, and analog or digital video cameras.

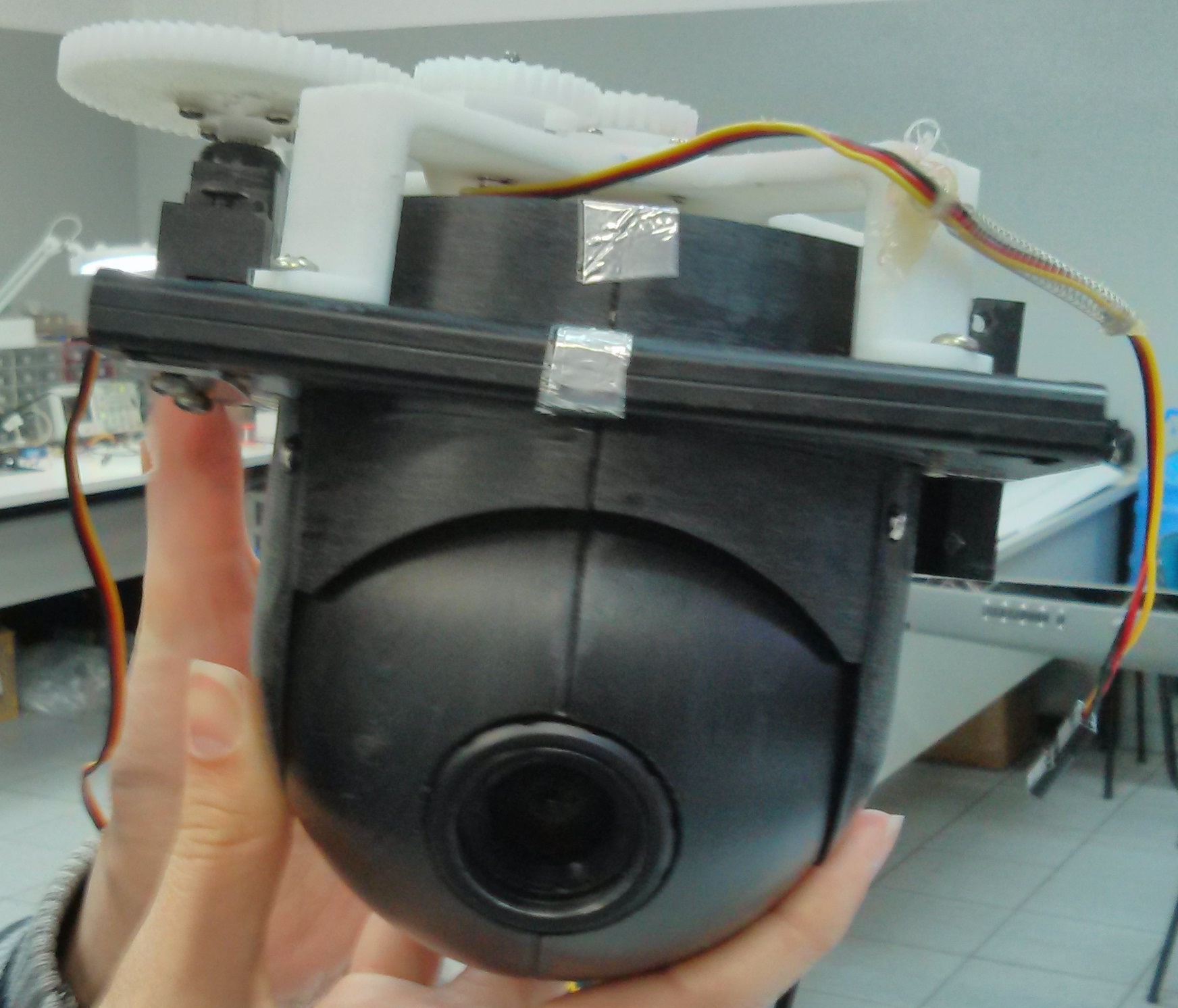

More recently, the staff and collaborators in the Inertial Systems and Sensor Fusion Lab have conceived, designed, developed, integrated, and tested various imaging pod prototypes and the embedded software for real-time control that provides the capabilities of aided inertial navigation, gyrostabilization, and georeferenced pointing. Most of the mechanical parts in the latter versions of the imaging pod are now prototyped in the lab with 3D printing.


A more detailed consideration of the potential advantages of sensor fusion for inertial navigation aiding favors the use of computer vision to provide robustness to GPS outage. Vision is among the most powerful senses available. Multidisciplinary research involving physics, optics, estimation and control of dynamic systems, as well as neurophysiology, psychology, and psychophysics provide the knowledge required for modeling and constructing computational theories to describe the visual process, and for conceiving and implementing systems that attempt to emulate the human visual apparatus. Vision provides information about the pose (position and attitude) and properties of observed objects and their mutual relationships, their surroundings, and the observer's motion.

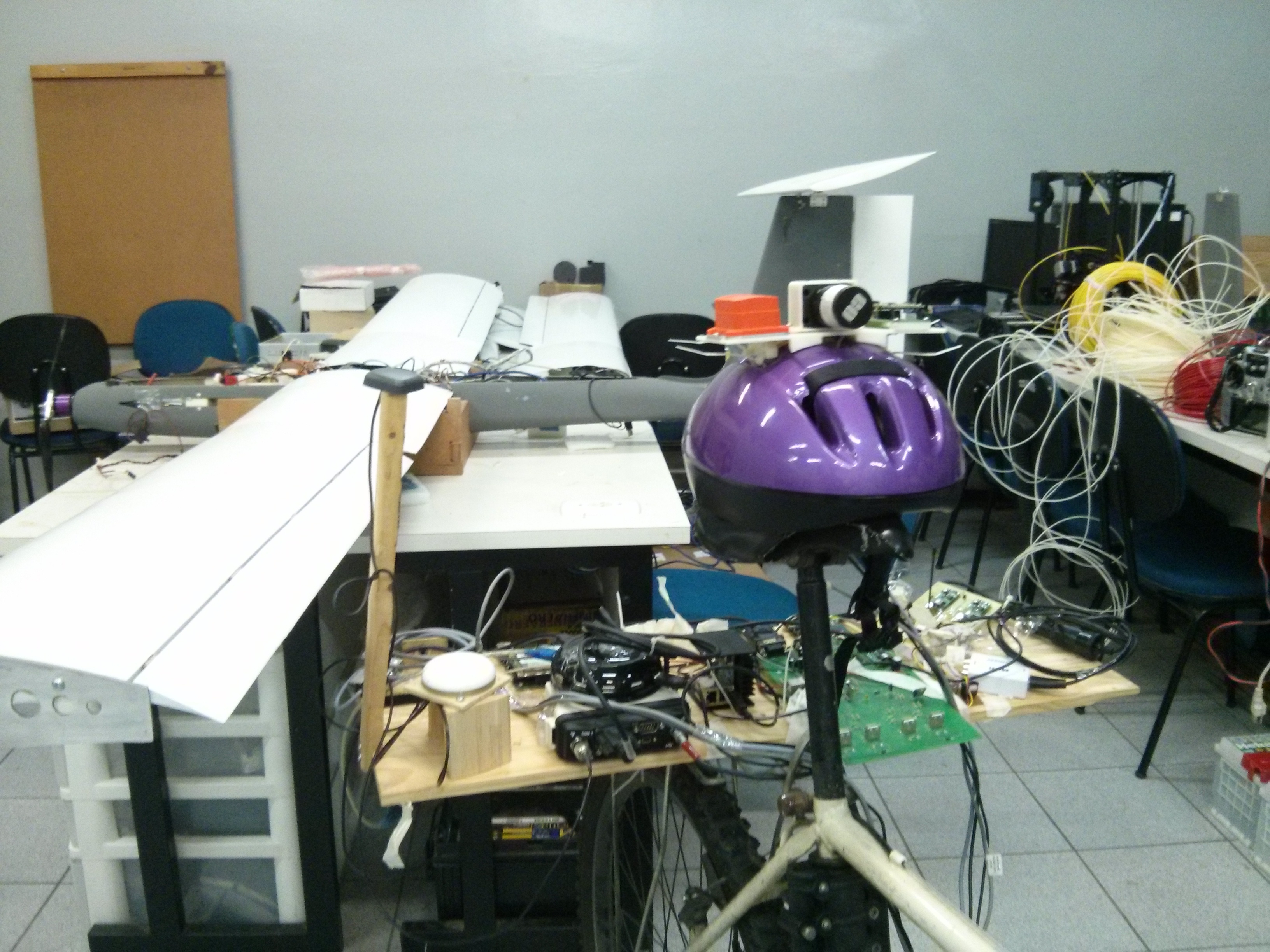

Visual information extracted via computer vision algorithms, the mathematical property of observability in dynamic systems, and the real-time implementation of embedded algorithms for the statistical fusion of measurement data from a variety of sensors on board  allow one to tackle the problem of navigation with small-sized vehicles during GPS outage and the estimation of the observed three-dimensional (3D) structure. One most motivating challenge in the lab is to successfully meet the technical requirements of real-time sensor fusion for accurate navigation in spite of limited resources. The lab is equipped with sensors and autopilots, a commercial airmodel frame, and electrically powered sailplanes conceived, designed and prototyped in the lab. A bicycle was also equipped for a proof of concept of algorithms and subsystems under realistic operation conditions. Flight tests occur when a NOTAM is issued by SRPV-SP (the Aeronautical Authority in charge of controlling the access to Brazilian airspace in the State of São Paulo).

back

Antropomorphic head with stereoscopic cameras and asymmetric vergence for experiments with active vision (1995-1999)

The antropomorphic head counted on DC motors to rotate the pan, tilt, asymmetric vergence axes. Two controller units encompassing logic and power circuits for PID control and PWM driving, respectively, were the interface for sending command signals to the head. Imaging was carried out with CCD cameras with servocontrolled lenses wherein aperture, focus, and zoom were adjusted according to the requirements of the visual task. (TRAEDV-N.MPG - 2.6MB).

The lab, at the time, had the following equipment::

• 2 monochrome cameras Hitachi KP-M1U and 1 color camera Hitachi VK-370;
• 2 PCs Pentium 166 MHz, 4 Gb HD SCSI, 32 Mb RAM, CD-ROM 8x, tube monitors 17';
• Head TRC-Helpmate Bi-Sight;
• VCR and tube TV;
• Video acquisition board FAST with a special purpose MPEG decompression chip;
• Servocontrolled lenses Fujinon H10x11E-MPX31 and image acquisition boards DT3552.

Computer Vision is a science based on theoretical foundations and requires experiments to validate a theory and/or algorithm. Thus, coupled with the intent of studying task-oriented visual perception  (purposive vision) and visual feedback, vision algorithms were tested in a binocular vision head capable of changing the image acquisition parameters in real time. Imaging became a dynamic process to be controlled in accordance with the visual information already obtained and still to extract from the next images. The visual information from the computer vision algorithms were employed to control the pose of the head, the vergence angles of the cameras, the focal lengths, focus, and lenses' apertures through activation signals sent by a network of computers running the vision and control algorithms in real time. It should be noted that the computing power of the PCs then used, Pentium 166 MMX, was quite limited.

The lab, at the time, investigated techniques for the identification, estimation, and control of the vision head, calibration of vision systems, and computer vision algorithms aiming at the implementation of visual behaviors for:

-Automation of processes wherein vision is a sensor;

-Vision-aided inertial navigation;

-Target tracking;

-3D reconstruction from stereoscopic vision, egomotion, and texture.

back

Course work:

EE-292: Visão Computacional para Controle de Sistemas (1995-2000)


ELE-82: Aviônica (2000-2014)


ELE-26: Sistemas Aviônicos

EES-60: Sensores e Sistemas para Navegação e Guiamento

EE-294: Sistemas de Pilotagem e Guiamento

EE-295: Sistemas de Navegação Inercial e Auxiliados por Fusão Sensorial

back

• Airframe Hangar 9 model Alpha 60 with various internal combustion engines;
• Electrically powered sailplanes;
• Commercial autopilots for control, guidance, and navigation of the above mini-UAVs;

• Tools and machine shop for simple repairs and manufacturing;
• 3D printer;
• Distinct 3-gimballed imaging pod prototypes;

• Computing resources, embedded implementations included, and software for the development of real-time navigation systems, computer vision, and sensor fusion;
• Analog and digital cameras and servocontrolled lenses;
• Telemetry, telecommand, and video links;
• Various low-cost IMUs with integrated GPS receiver, altimeter, and magnetometer;
• GPS receivers;
• Magnetometers.


Publications

Viegas, W. da V.C. ; Waldmann, J.; Santos, D.A.; Waschburger, R. Controle em três eixos para aquisição de atitude por satélite universitário partindo de condições iniciais desfavoráveis. Controle & Automação (Impresso), v. 23, p. 231-246, 2012.

Ferreira, J.C.B.C.; Waldmann, J. Covariance Intersection-Based Sensor Fusion for Sounding Rocket Tracking and Impact Area Prediction. Control Engineering Practice, v.15, p. 389-409, 2007.

Waldmann, J. Feedforward INS aiding: an investigation of maneuvers for in-flight alignment. Controle & Automação (Impresso), v. 18, p. 459-470, 2007.

Waldmann, J. Line-of-Sight Rate Estimation and Linearizing Control of an Imaging Seeker in a Tactical Missile Guided by Proportional Navigation. IEEE Transactions on Control Systems Technology, v.10, n.4, p. 556-567, 2002.

Caetano, F. F.; Waldmann, J. Attentional Management for Multiple Target Tracking by a Binocular Vision Head. SBA. Sociedade Brasileira de Automática, Campinas, v.11, n.3, p. 187-204, 2000.

Viana, S. A. A.; Waldmann, J.; Caetano, F.F. Non-Linear Optimization-Based Batch Calibration with Accuracy Evaluation. SBA. Sociedade Brasileira de Automática, Campinas, v. 10, n.2, p. 88-99, 1999.

back

Staff and collaborators (setembro 2014):

• Jacques Waldmann:
  Professor  - Head - ITA

• Raul Ikeda Gomes da Silva:
  Professor - INSPER
• Rafael Marcus Contel Coutinho
  Technician
• Leonardo Teles da Silva
  Technician
• Marcus Vinicius da Costa Ramalho
  Aeronautical Engineer - Collaborator - Itamaraty
• Maurício Andrés Varelas Morales
  Professor - Collaborator - ITA
• Sérgio Frascino Müller de Almeida
  Professor - Collaborator - ITA
• Thiago Felippe Kurudez Cordeiro
  Professor - Collaborator - UnB
• Ronan Arraes Jardim Chagas
  D.C. Researcher - Collaborator - INPE

• Tiago Bücker
   M.C. Electronic Engineer - Collaborator

Photos/Videos:

First configuration used for monocular vision tracking with pinhole microcamera Pacific VP-500 and lens with focal length  3.7mm. (Dec/96).

Algorithm 1: Motion detection, gray level segmentation and motion centroid estimation. Requires a background with a quite homogeneous texture. (AUTOTR-N.MPG - 525 KB)

Algorithm 2: Compensates the background motion induced by camera tracking motion by means of measurements from encoders attached to the head axes, morphological filtering (erosion followed by dilation), motion segmentation, and motion centroid estimation. Requires knowledge of the focal length of the lenses.( EDVATR-N.MPG - 1.7MB)

Configuration used for vergence, pan, and tilt control of the stereoscopic vision head, switching between the video signal  sources, and development of a graphical user interface.( Jul/96 - Mar/97)

Video presenting the graphic user interface, and the pose and angular velocity control modes. (CNPQ-S.MPG - 39.7MB)
